Electric vehicle charging station can quickly charge electric vehicles (charging for 10-15 minutes, more than 80% of the rated power), and monitor the status of the charging host and power battery during the charging process, including distribution room, host room, monitoring room, terminal and supporting facilities. Its construction site requirements are high, large area, complete supporting facilities, and can meet the charging needs of all electric vehicles at the same time. It is suitable for large-scale construction projects such as municipal planning and highway service areas.

Electric vehicle charging station distribution room:

The several thousand volt power supply grid provides input power to the charging host through transformers and other equipment. The use of general power distribution equipment has strong resistance to electromagnetic interference, low working noise, high reliability, and super cost-effectiveness!

Electric vehicle charging station host room:

It has several charging hosts built in to receive the command parameters of the charging terminal, realize the hardware operation of the charging module, and detect the working status of each charging module in real time. According to user settings, it can automatically combine equipment with different capacities of 6KW-200KW to meet different electric vehicle charging needs.

Electric vehicle charging station with multiple protections:

AC input overvoltage and undervoltage, DC output overvoltage and undervoltage, short circuit, overtemperature and other protections.

Electric vehicle charging station monitoring room:

Accurately monitor and record the operating parameters of the charging host, fault alarm signals, and the voltage, temperature, charging capacity and other data of the battery pack; automatically generate daily charging information, monthly charging information and various reports, clearly showing the use of each charging host and battery.

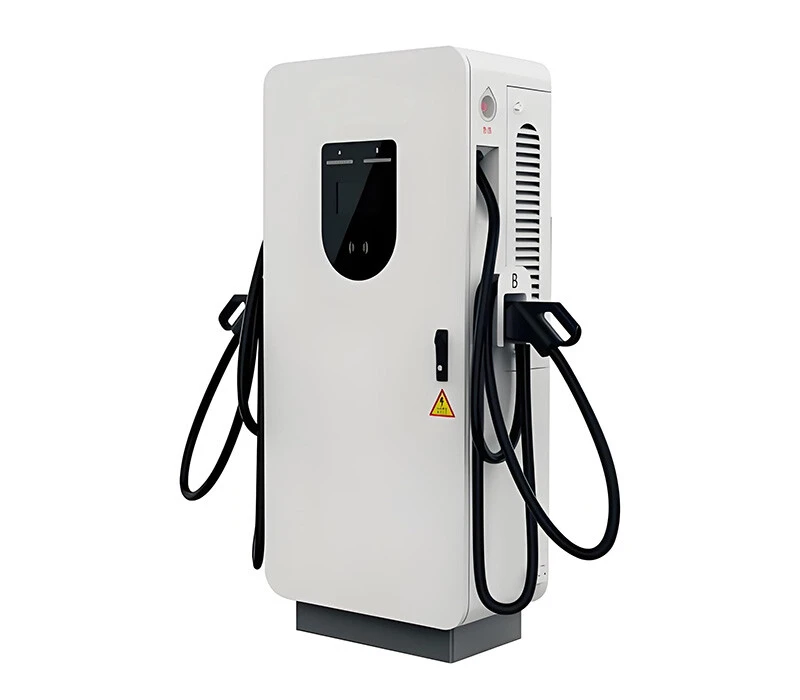

Electric vehicle charging station charging terminal:

Ø The charging interface between the charging host and the electric vehicle is an auxiliary device for the charging host to charge the electric vehicle. It mainly realizes the human-computer interaction function, can collect battery data, monitor the charging process of the electric vehicle in real time, and realize charging start/stop, electricity billing, card management, charging interface management, communication management, ticket printing and other functions.

Ø Human-computer interaction: digital LCD color touch screen, real-time interface display of charging information, charging status, consumption amount, and bill printing, with voice prompts and far-infrared detection (optional);

Ø Card management: contactless IC card, bank RFID card (optional), preset various parameters of electric vehicle batteries in the card, stored value consumption;

Ø Applicable batteries: iron lithium, lead acid, lithium, nickel metal hydride, nickel cadmium, etc.;

Ø Super protection: protection level IP54, anti-rust, windproof, anti-theft, anti-humidity, anti-mildew, anti-salt spray, anti-load removal;

Ø Luxurious appearance: double-layer paint, smooth and flat, eye-catching colors, and great advertising value.
