I. Introduction

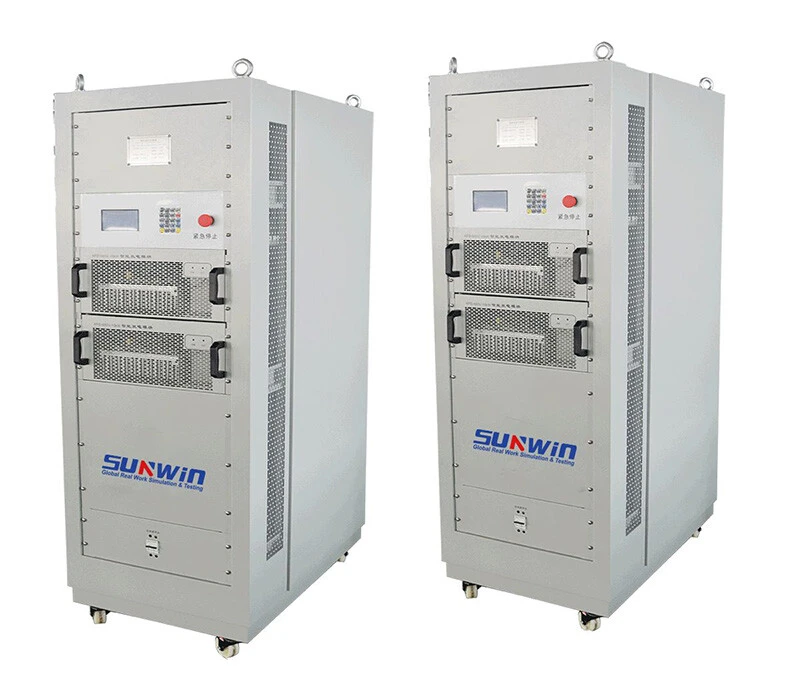

Energy-consuming electronic load bank adopts high-frequency switching technology and air-cooled heat dissipation mode, which can realize over-temperature, under-voltage, over-voltage, over-current and other protection functions.

The load adopts the circuit design and control module with independent intellectual property rights of Sunwin, which can achieve the effect of maintaining constant power and constant current in the process of 10-800V input voltage test of fuel cells in a wide range. The test has high accuracy, strong pertinence, complete functions, and reliable safety. It can perform multiple tests and inspections on fuel cells. The system has high integration and can complete the setting and inspection of all test links on a unified software.

2. Implementation standards

《Fuel cell engine performance test method》GB/T 24554-2009

《Automobile performance inspection standard》GB/T 19055-2003

《General technical conditions for proton exchange membrane fuel cell battery stack》GB/T 20042.2-2008;

《Hydrogen station design specification》GB/T50177-2005

《Hydrogen station technical specification》GB50516-2010

《Pipeline pressure test requirements》GB/T 3616

《Technical conditions for fuel cell electric vehicle onboard hydrogen system》GB/T 26990-2011

《Function identification and graphic symbols for process instruments and control instruments》HG/T 20505

《Fuel cell vehicle hydrogen refueling port》GB/T 26779-2011

《Industrial metal pipeline engineering construction and acceptance specification》GB 50235

《Electric vehicle remote service and management system technical specification Part 3: Communication protocol and data format》GB/T 32960.3-2016

Technical Datas
