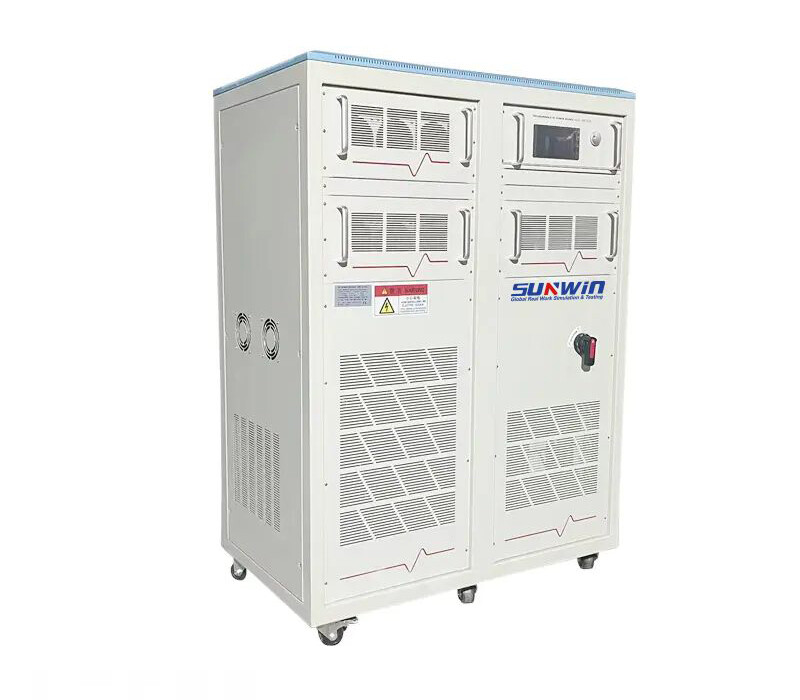

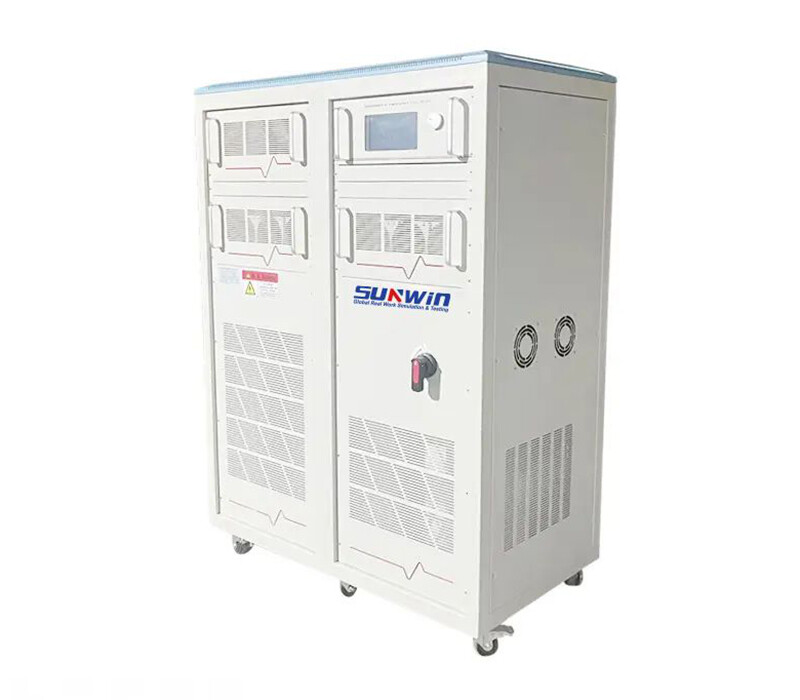

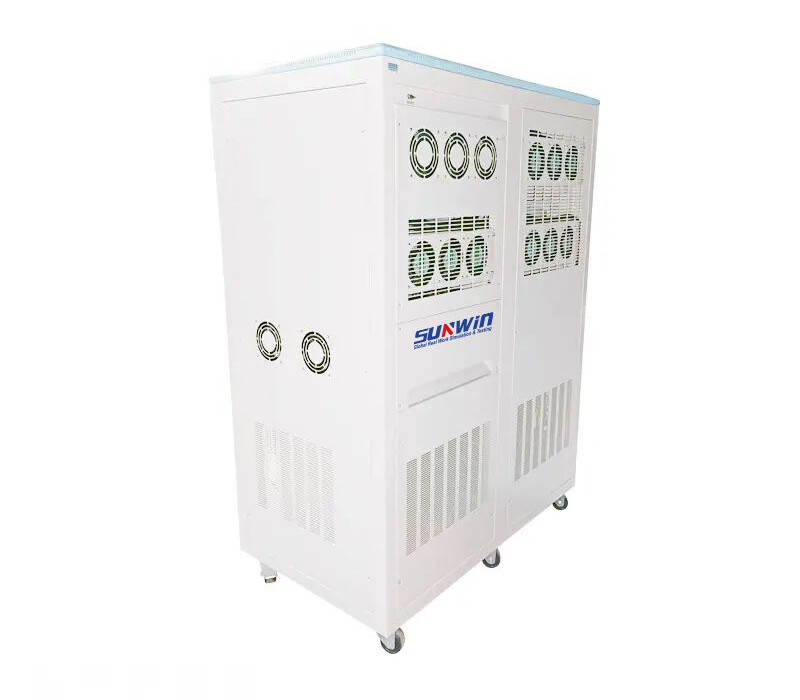

Programmable DC Power Supply
Programmable DC Power Supplies stand out for their precision, reliability and flexibility, making them a valuable addition to any test lab, development facility or industrial environment. Cutting-edge technology and user-centric design enable superior performance for demanding power needs.
Request for quotation

Programmable DC Power Supplies stand out for their precision, reliability and flexibility, making them a valuable addition to any test lab, development facility or industrial environment. Cutting-edge technology and user-centric design enable superior performance for demanding power needs.



Product Benefits:

1. Enhanced Precision and Control

The Programmable DC Power Supply provides exceptional precision and control, essential for accurate testing and measurement. This ensues that your devices are tested under exact conditions, leading to more reliable and reproducible results.


2.Versatility in Applications

With its wide output range and comprehensive programmability, this power supply is versatile enough to be used in various applications, from basic research and development to advanced production testing. Its adaptability makes it a valuable asset in any laboratory or production facility.


3. Improved Efficiency and Performance

The high efficiency of the Programmable DC Power Supply reduces energy consumption and heat generation, leading to better performance and longer life of both the power supply and the devices under test. This contributes to cost savings and operational efficiency


4. Enhanced Safety and Protection

The built-in safety features protect both the power supply and the connected devices from potential damage due to over-voltage, over-current, or overheating. This ensures a safe testing environment and minimizes the risk of costly equipment damage.


5. Compact and Flexible Design

Its compact design allows for both bench-top and rack-mounted configurations, providing flexibility in various setup environments. This space-efficient design ensures that it can be easily incorporated into existing workflows without requiring significant reconfiguration.


Technical Datas

ModelCurrent Power Supply
ModelPS-100
Output ParameterMax Capacity100kW

Circuit No.2 channel

LoopParameterFirst ChannelSecond Channel

Voltage RangeDC50-750VDC50-750V

Rated VoltageDC500VDC500V

Current Range0-100A0-100A

Volume50kW50kW

Voltage ripple≤1%  F.S(Full Scale)

Current ripple≤0.5% F.S(Full Scale)

Voltage stabilization accuracy≤±0.5% F.S(FS Resistor Load)

stabilized current precision≤±1% F.S(FS Resistor Load)

line regulation±0.1% F.S

load regulation±0.3% F.S

Output rise time<100mS(10%-90%)Resistive load test

Transient Response Time<10ms

mode of connectionTerminal
Control LoopVoltage380V±15%

Input modeThree phase four wire +PE

Frequency50Hz±10%

Control ModeLocal touch screen + remote hard wire start and emergency stop control box

Mode of connectionTerminal

power supply modeExternal power supply
CasingWorking Modecontinuous working

Insulation GradeF Level

Cooling ModeIntelligent speed fan, forced air cooling, forward air, after air.

Noise1m range≤65dB

SizeAbout  500mm*700mm*1000mm(W*D*H)

Weightabout 80kg

Moving ModeThere are casters on the bottom and handles on the front for easy movement.
Defensive FunctionVoltage limiting, current limiting, over voltage, over current, over temperature overload, short circuit,Protection cut off output, shutdown self-discharge function
Other FunctionBoth input and output have pre-charging functions
